In cutting-edge industries like chemical energy, biopharma, and semiconductor manufacturing, stainless steel cylindrical components operate under extreme pressure, zero-contamination, and ultra-sealing demands. As precision engineering specialists, we deliver nanoscale roundness control, aerospace-grade welds, and medical-grade finishes to craft pressure vessels, reactors, transfer chambers, and precision instrument parts for mission-critical environments.
I. Extreme Performance Benchmarks
| Parameter | Specification | Failure Risk |
|---|---|---|
| Leak Tightness | ≤1×10⁻⁹ Pa·m³/s (helium test) | Hazardous media leakage |
| Pressure Resistance | Up to 35MPa design pressure | Catastrophic system failure |
| Roundness/Concentricity | ≤0.05mm/m tolerance | Seal failure, bearing wear |
| Weld Quality | 100% X-ray Class I certification | Stress corrosion cracking |
| Surface Finish | Ra ≤0.4μm (internal EP polish) | Contamination retention, flow resistance |
II. Cutting-Edge Manufacturing Technologies
-
Precision Rolling & Rounding
-
CNC 4-roll plate bending with springback compensation
-
Laser-guided curvature monitoring + real-time error correction
-
Hydraulic rounding: ≤0.1mm deviation per Φ500mm
-
-
Aerospace-Grade Welding
-
Auto TIG: Backing gas + internal argon purge for full-penetration welds
-
Plasma longitudinal welding: 40% narrower HAZ
-
Robotic circumferential welding: ±0.2mm overlap accuracy
-
Weld treatment: Reinforcement removal + internal polishing
-
-
Micron-Level Tolerance Control
-
CMM inspection: Cylindricity/straightness/concentricity (±3μm)
-
Custom fixtures: Flange alignment ≤0.05mm
-
-
Medical-Grade Surface Finishing
Process Application Surface Roughness Mechanical polishing Pharma/food contact surfaces Ra 0.2~0.4μm Electro-polishing (EP) Ultra-high-purity systems Ra ≤0.1μm Passivation Intergranular corrosion resistance Fe²⁺ ≤10μg/cm² -
Rigorous Validation
-
Helium leak testing: Sensitivity 10⁻⁹ mbar·L/s
-
Hydrostatic test: 1.5x design pressure (30-min hold)
-
Pneumatic test: Bubble-free verification at operating pressure
-
III. Mission-Critical Applications
-
Ultra-High-Pressure Vessels: Hydrogenation reactors/polymerization autoclaves (20MPa+/550°C)
-

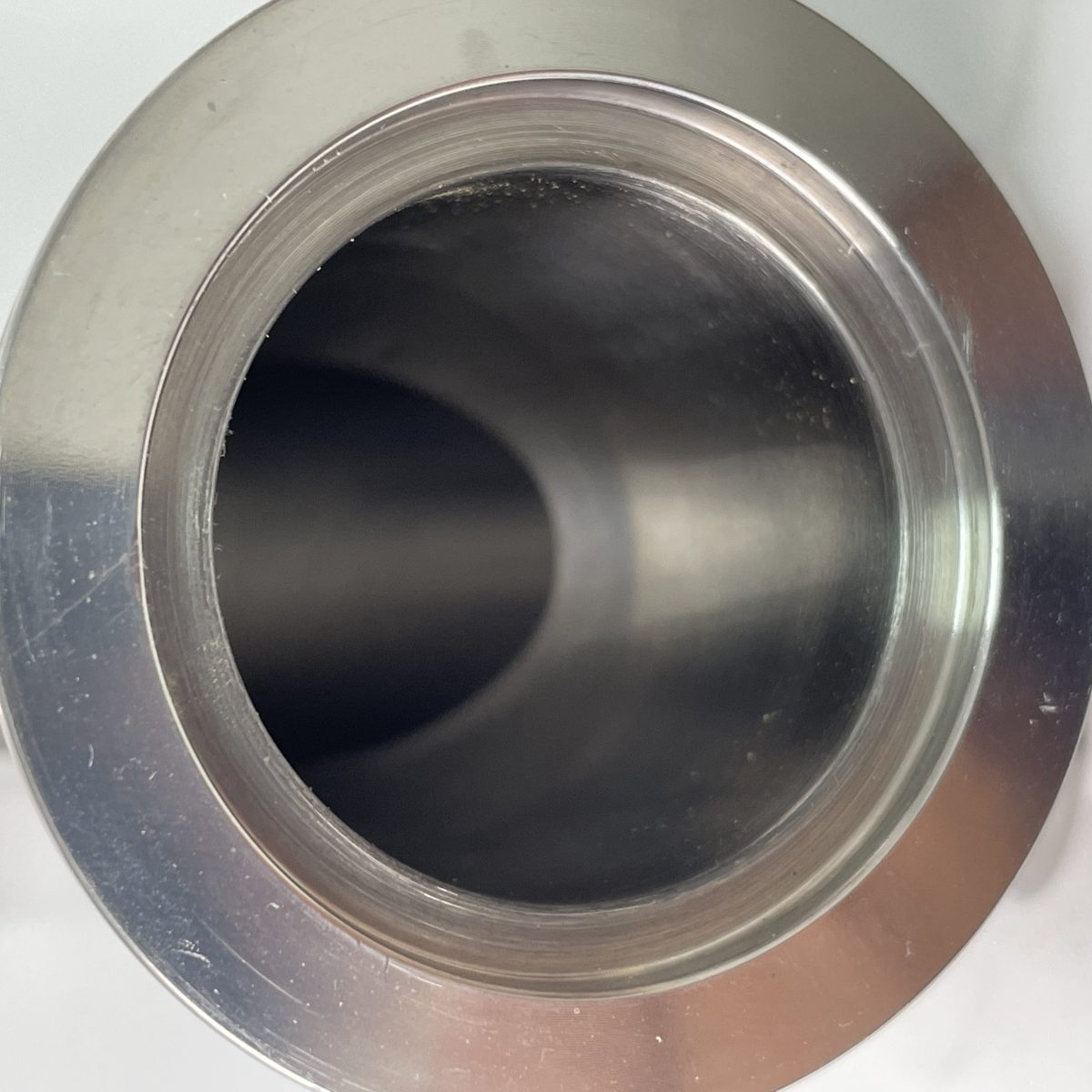

High-Purity Transfer Systems: Semiconductor gas lines/biopharma pipelines (EP polished)
-
Rotating Components: Centrifuge rotors/hydraulic cylinders (G2.5 dynamic balance)
-
Aseptic Storage: Vaccine tanks/cell culture vessels (FDA 21 CFR Part 11 compliant)
IV. Competitive Differentiation
-
Exotic Material Expertise: Super duplex 2507, Hastelloy C276
-
Certifications: ASME U Stamp, PED 2014/68/EU
-
Digital Twin Manufacturing: AI-optimized parameters + FEA deformation simulation
-
Lifecycle Management: Material traceability + WPQR documentation
V. Military-Grade Workflow
-
Technical Briefing: Media/pressure/temperature/cleanliness specs
-
Virtual Prototyping: Structural simulation + process modeling
-
Joint Review: Material/inspection standard confirmation (ASME/DIN/GB)
-
Process Witnessing: Live monitoring + third-party factory audits
-
Traceable Delivery: Full quality dossier (NDT reports/pressure test videos)
Precision Cylinders. Absolute Integrity.
When micron-level roundness determines system safety and nano-scale finishes impact product purity, we redefine performance boundaries with aerospace precision and pharmaceutical quality consciousness.
Request Your Technical Dossier Today!
Free pressure vessel optimization consult + High-Performance Cylinders Whitepaper
(24-hr response | Global logistics | Custom design support)
